Ice flakers · GG range
Air cooled range

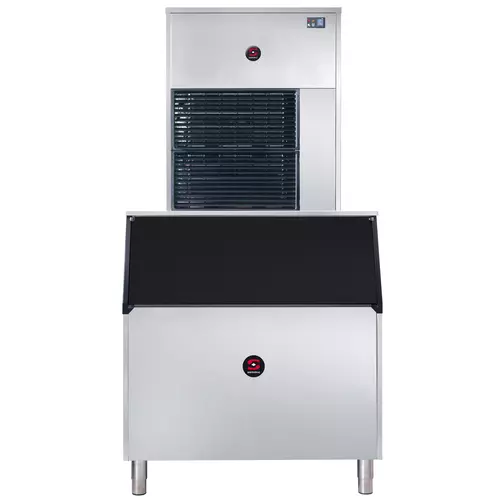

Air cooled modular ice flakers with independent ice storage bin
3 models
Modular ice flakers with independent storage bins offering a daily production of up to 390 Kg.
- Pearl ice: soft and long-lasting.
- Ideal for fresh food displays and food preservation.
- Vertical cylindrical evaporator.
- AISI 304 stainless steel body.
- Electro-mechanical control panel.
- Class T tropicalized machine.
- Air temperature: 5-40ºC.
- Water temperature: 5-35ºC.
Comparison Air cooled range
Air cooled range | |||
---|---|---|---|
GG-220A | GG-400PA | ||
Water cooled | - | - | |
Air cooled | yes | yes | |
Production in 24 h up to | 220 kg | 390 kg | |
Tank capacity | |||
Total loading | 780 W | 1300 W | |
Water Intake | 3/4" | 3/4" | |
Drain diameter | 20 mm | 20 mm | |
External dimensions (W x D x H) | |||
Width | 515 mm | 675 mm | |
Depth | 550 mm | 550 mm | |
Height | 575 mm | 660 mm |
Ice flakers · GG range
Flake ice making machines ideal for displaying or keeping food fresh.
Complete range that consists of models with built-in ice storage bin offering a daily production from 48 to 88 kg, as well as modular models with independent storage bins, offering a daily production of up to 395 kg.
Sammic GG flake ice makers will give you optimal cooling for a wide variety of products and applications.
- Fresh food displays in supermarkets and fast serve restaurants, seafood preservation and cocktails are just some day-to-day examples. But ice flakers are equally widespread and used in laboratories, healthcare, industrial and very diverse scientific environments.
- Flake ice enables various sectors to maintain temperatures controlled and thus ensuring security in food, commercial, scientific and industrial applications.
- The high-grade food safe stainless steel and superior density isolation will ensure quality with an optimized energy consumption.
- The working conditions of these machines are for water with a degree of hardness from 15°F to 40°F. For water outside of these parameters and especially in the case of hard water with a high calcium content, the use of filters or decalcification systems is required.
Comparison
Air cooled compact range | Air cooled range | ||||
---|---|---|---|---|---|
GG-55PA | GG-90PA | GG-220A | GG-400PA | ||
Water cooled | - | - | - | - | |
Air cooled | yes | yes | yes | yes | |
Production in 24 h up to | 48 kg | 85 kg | 220 kg | 390 kg | |
Tank capacity | 20 kg | 20 kg | |||
Total loading | 505 W | 533 W | 780 W | 1300 W | |
Water Intake | 3/4" | 3/4" | 3/4" | 3/4" | |
Drain diameter | 20 mm | 20 mm | 20 mm | 20 mm | |
External dimensions (W x D x H) | |||||
Width | 465 mm | 465 mm | 515 mm | 675 mm | |
Depth | 595 mm | 595 mm | 550 mm | 550 mm | |
Height | 790 mm | 784 mm | 575 mm | 660 mm |
